4043TR Recirculating Impact Crusher

INTERACTIVE IMAGE:

  • Use your cursor to rotate the image 360°
  • Use your scroll wheel to zoom in
  • Double click for a full-screen image, which you can also rotate and zoom

The 4043TR Closed Circuit Impact Crusher is built with all the rugged performance and durability of our standard 4043T, yet the 4043TR offers two additional functions:

  • A large high speed two-deck screen, fed directly from the crusher, delivers sized product off the fines conveyor

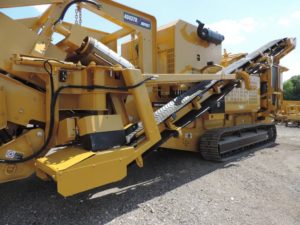

  • An additional radial overs conveyor feeds directly back into the hopper, or can be positioned to the side for stockpiling

The 4043TR incorporates two of our patented technologies — the Crusher Relief System for the crusher lid and Smooth Start® for the screen box. For unmatched productivity, especially in areas such as road construction where a smaller footprint is needed, the 4043TR is an ideal choice.

Click to Zoom in

Features Overview:

  • Crusher
    • 40″ x 43″ (1m x 1.1m) horizontal impact crusher
    • 43″ x 32″ (1.1m x .8m) feed inlet opening
  • Screen
    • Heavy-duty 5′ x 12′ (1.5m x 3.7m) two-bearing screen deck with relief deck and downhill throw
    • USA-made Grade 80 steel screenbox
  • Engine & Controls
    • CAT® C9.3B 375 HP (280kw) diesel engine – Tier IV Final
    • LED touch-screen control panel
    • Wireless remote control operation
  • Hopper / Feeder
    • 40″ x 13′-0″ (1m x 4m) vibratory grizzly feeder
  • Conveyors
    • 42″ (1.1m) main belt
      • 11′-3″ (3.4m) discharge height
    • 48″ (1.2m) fines belt
      • 11′-3″ (3.4m) discharge height
      • Delivers sized product from front of machine
    • Cleated 20″ (.5m) recirculating belt
      • 7′-0″ (2.1m) discharge height, can be used as a side stacker
    • 24″ (.6m) fines side conveyor
      • 7′-0″ (2.1m) discharge height
  • Unique/Patented Features
  • Structure / Undercarriage
