612W Portable Trommel Screen

Trommel 612W

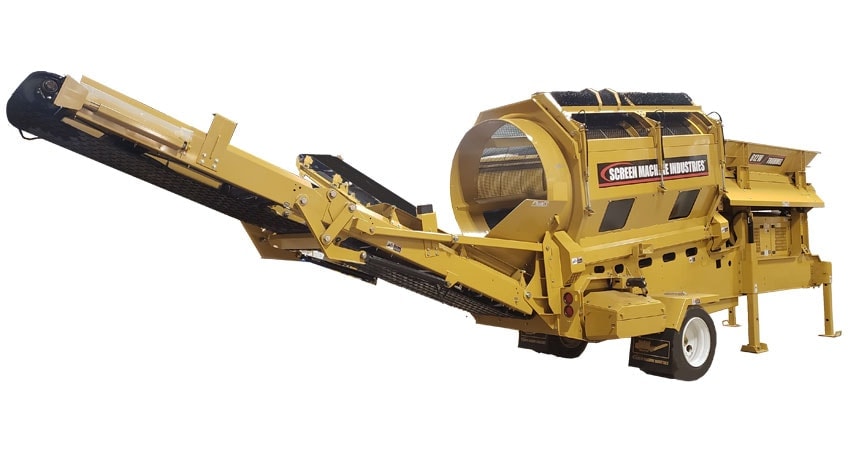

The 612W Trommel is a self-contained, diesel-powered, portable screening plant designed to separate topsoil, compost, wood chips and green waste products. It features a direct open feed hopper with a large 6′-0″ x 12′-0″ (1.8m x 3.6m) rotating drum that creates 160 square feet (48.7m Sq.) of screening area. The pile heights created by the side discharge conveyor and oversize conveyor will give the operator hours of uninterrupted processing time. It is the landscaper’s ultimate high capacity processing plant for nearly any feed material.

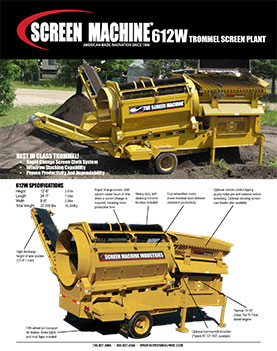

Click to Zoom in

Features Overview:

  • Screen
    • 6′-0″ x 12′-0″ (1.8m x 3.6m) heavy-duty screen
    • 160 square feet (48.7m sq.) of actual screening surface area
    • Four wheel/twin motor driven drum
    • Unique rapid change screen cloth system
    • Self-cleaning trommel drum brushes
  • Engine / Control
    • 84 HP (62 kw) diesel engine
    • 70 gallon (264.9L) fuel tank = 16 hours run time
  • Conveyors
    • Side discharge conveyor height 13′-11′ (3.6m)
    • Guide rollers for conveyor belt centering
    • Optional oversize conveyor
    • Hydraulic fold-over conveyor for easy portability
  • Hopper / Feeder
    • Low 10′-4″ (3.1m) hopper feed height
    • Variable speed feeder belt
    • Optional remote tipping grizzly over hopper
    • Optional vibrating screen over hopper
  • Structure / Undercarriage
    • Heavy-duty unibody steel frame design
  • Unique Features
    • Optional Hammermill Shredder – US Patent #7,121,487
    • Fifth wheel pin transport for easy transportation
    • Hydraulic landing gear
