4043T Portable Impact Crusher

4043T Impact Crusher

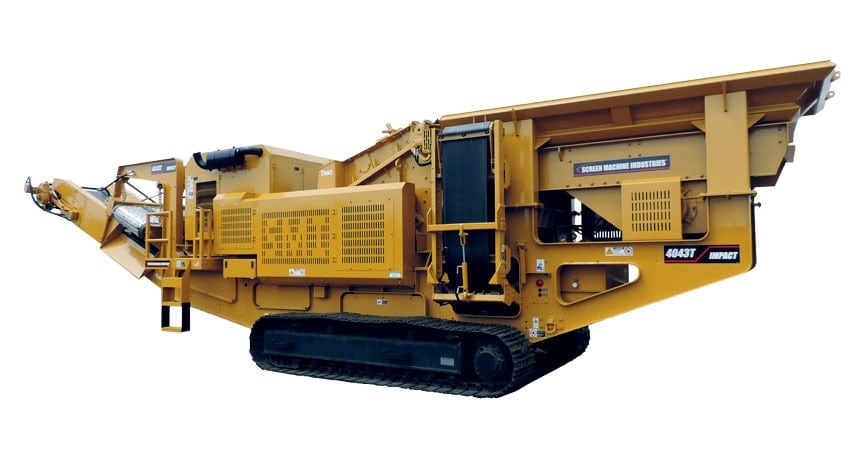

The 4043T Impact Crusher is a track-mounted design for quarry rock or recyclable materials such as concrete and asphalt. A Caterpillar® C-9 ACERT Tier III 300 HP (223.7 kw) diesel engine as well as a heavy-duty tracked undercarriage are standard with this model. Full remote controlled movement and operation allows your wheel loader or excavator operator to move and operate the 4043T Impact Crusher from the safety and comfort of their machine.

Our patented Remote Crusher Relief System is a key feature that allows for blockage clearance during operation. The wireless remote control triggers the lifting lid allowing over sized material to pass through the crusher without stoppage. This feature alone can save countless of hours of lost production time during operation.

The sophisticated design of the 4043T Impact Crusher generates high production with low maintenance costs.

Click to Zoom in

Features Overview:

  • Crusher
    • 40″ x 43″ (1m x 1.1m) Horizontal impact crusher
    • 43″ x 32″ (1.1m x .8m) Feed inlet opening
  • Engine & Controls
    • Caterpillar® C-9 ACERT Tier III 300 HP (223.7 kw) diesel engine
    • Laird® wireless remote control operation
  • Hopper / Feeder
    • 40″ x 13′-0″ (1m x 4m) Vibratory grizzly feeder
  • Conveyors
    • 42″ (1.07m) Main Belt
      • 10′-9″ (3.28m) discharge height
    • 24″ (.6m) Fines Side Conveyor
      • 7′-0″ (2.1m) discharge height
  • Unique/Patented Features
    • Remote Crusher Relief System – US Patent #7,229,041
    • Fully adjustable cross-belt magnet with stainless steel chutes
  • Structure / Undercarriage
    • US-made Grade 80 steel construction
    • Heavy-duty tracked undercarriage
