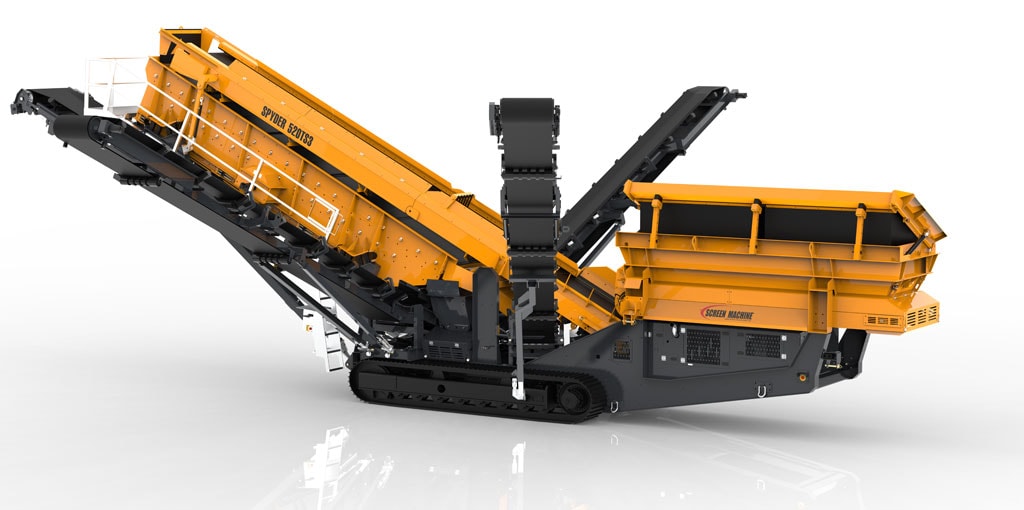

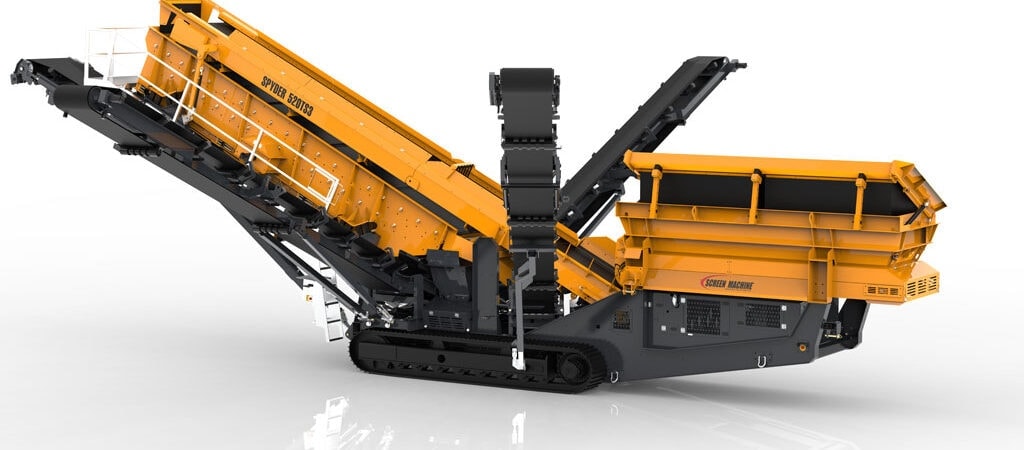

Spyder 520TS3 Screen

The newest member of the Screen Machine Spyder family, the Spyder 520TS3 is a high-capacity screening plant that can deliver four finished products simultaneously — fines, small mids, large mids and overs. The 5’-0” x 20’-0” (1.5m x 6.1m) triple-deck has been designed for maximum output and minimal downtime. Can be used as a stand-alone screen or in tandem with a crusher.

Features Overview:

Click on the image below to view a specification “flipcard”

  • Triple Deck Screen
    • 5’-0” X 20’-0” (1.5m x 6.1m) top and middle deck (side tension)
    • 5’-0” X 20’-0” (1.5m x 6.1m) bottom deck (end tension)
    • Adjustable screen angles
  • Engine / Control

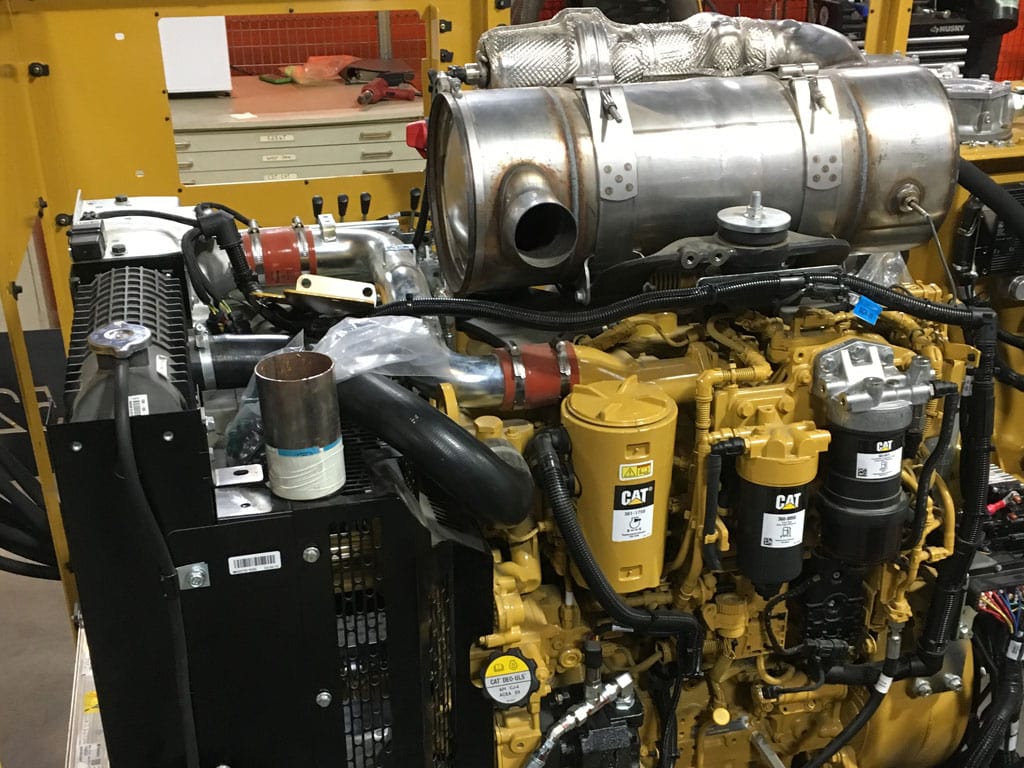

    • 110 HP (82 kw) CAT® C4.4 Tier IV Final diesel engine

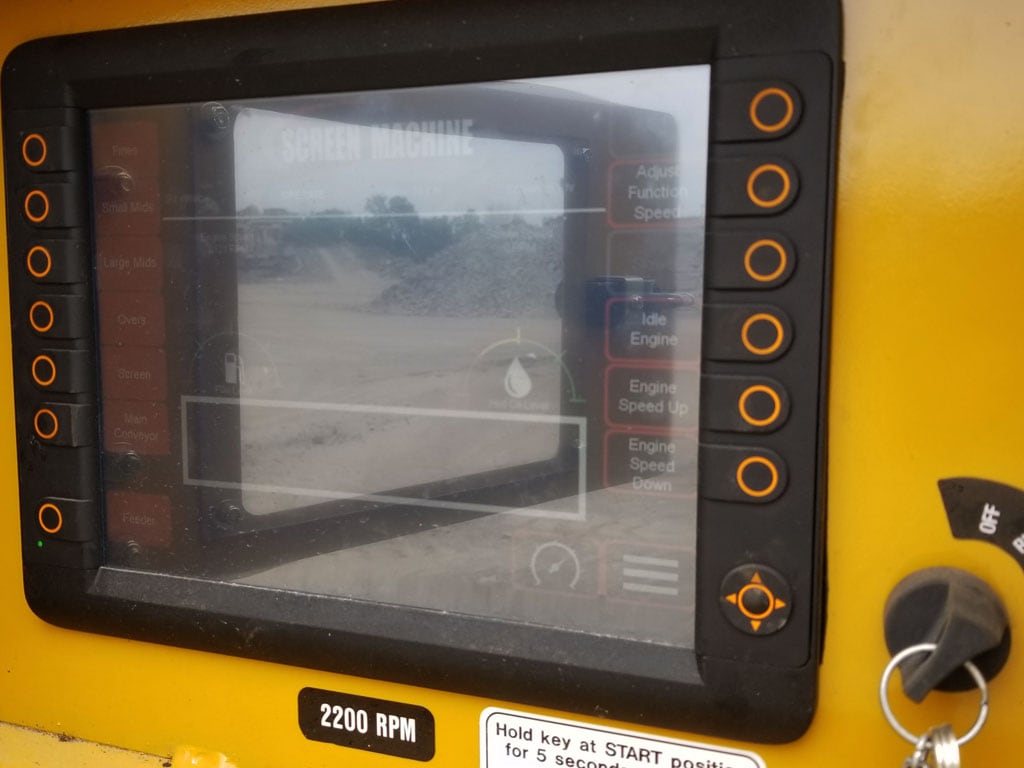

    • LED touch-screen control panel
    • Wireless remote control operation
  • Conveyors

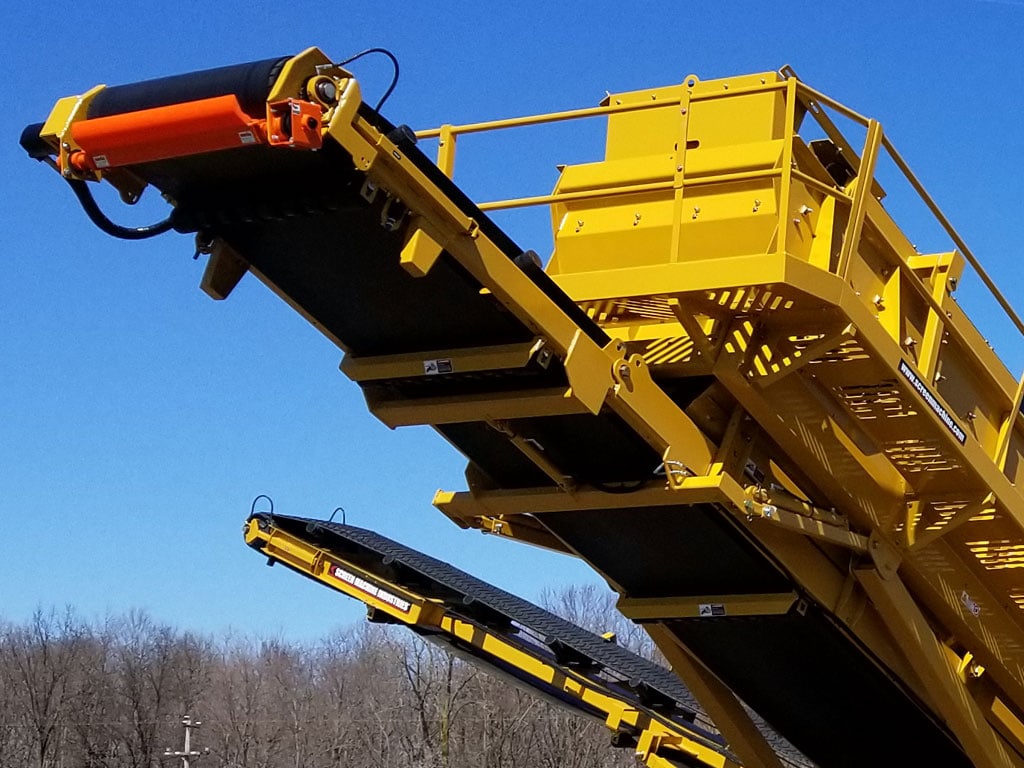

    • 42″ (1,067mm) wide fines conveyor
    • 16′-11″ (5.2m) fines discharge height
    • 24″ (610mm) wide large mids, small mids and oversize
      conveyors
    • 17’-3” (5.3m) large mids discharge height
    • 16’-9” (5.1m) small mids discharge height
    • 16’-9” (5.1m) oversize discharge height
    • Side discharge belt angles: 18°, 21°, 24°
  • Hopper Feeder

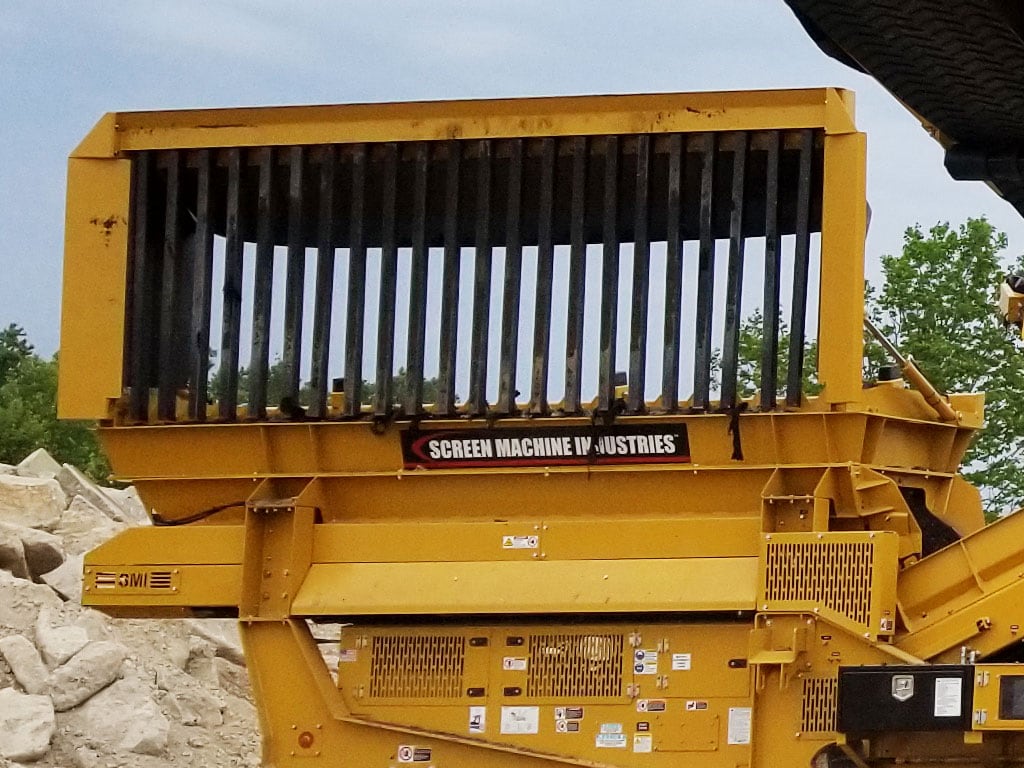

    • Standard grizzly
    • 9 cubic yard (6.9 cu. m.) hopper
    • Low feed height of 8′-4″ (2.6m) without grizzly
  • Structure / Undercarriage
    • Heavy-duty tracked undercarriage
    • 20″ (500mm) shoe width for low ground pressure
  • Unique / Patented Features

Highlights (Click To Enlarge)
