JHT Portable Jaw Crusher

JHT Jaw Crusher

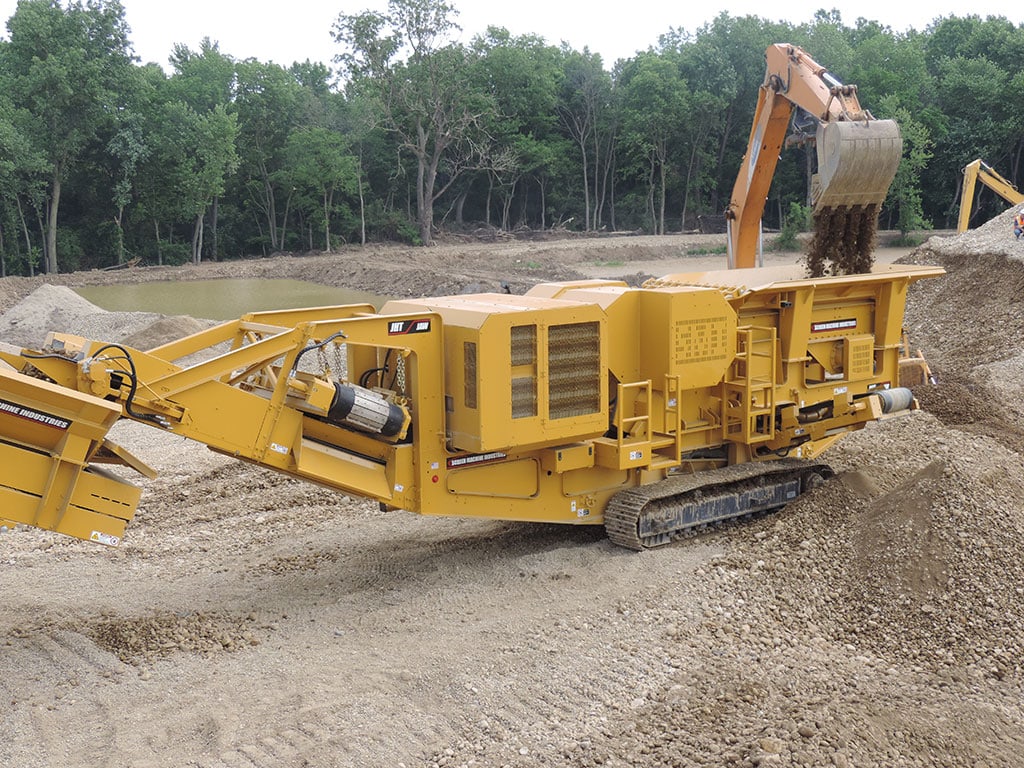

The JHT Jaw Crusher, based on the JXT Jaw Crusher model, is a track-mounted crusher featuring remote control jaw adjustment. Operated by wireless remote control, the JHT can process your hardest and most difficult materials, greatly reducing the typical risk of stoppages, damages and high-maintenance costs associated with most other jaw crushers. This powerful high-capacity plant is best suited to quarry work, where foreign materials are less likely to be encountered.

Click to Zoom in

Features Overview:

  • Crusher
    • True 26″ x 45″ (66cm x 1.14m) inlet opening
    • Remote control hydraulic jaw adjustment
  • Engine & Controls
    • C-9 Tier III Caterpillar® 300 HP (225 kw) engine
    • Laird® wireless remote control operation
  • Hopper / Feeder
    • 40″ x 13′-0″ (1m x 4m) Vibratory grizzly feeder
    • 14′-0″ (4.3m) Long feed hopper opening
  • Conveyors
    • 42″ (1.07m) Main Belt
      • 10′-9″ (3.28m) Discharge height
    • 24″ (.6m) Fines Side Conveyor
      • 7′-0″ (2.1m) Discharge height
  • Unique Features
    • Fully adjustable cross-belt magnet with stainless steel chutes
  • Structure / Undercarriage
    • US-made Grade 80 steel construction
    • Heavy-duty tracked undercarriage
