Spyder 514TS Double/Triple Deck Screening Plant

Spyder 514TS Screening Plant

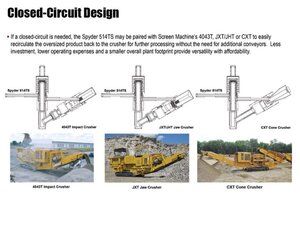

The Spyder 514TS is a patented track-mounted reverse screening plant designed for primary or secondary screening of rock, sand & gravel, soils and other materials. The 5′ x 14′ (1.5 m x 4.3 m) double-deck screen is capable of producing three finished products simultaneously. The option for a third deck with the Spyder 514TS3 edition allows for screening of four products at once. The versatile 514TS can be used as a stand-alone screen or in conjunction with a crusher to easily recirculate oversized material back into the crusher for further reduction (Note: Crusher must be benched a minimum of 24”).

Click to Zoom in

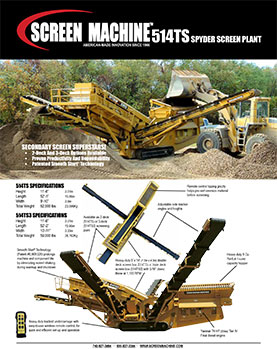

Spyder 514TS Double/Triple Deck Screening Plant

Features Overview:

  • Screen
    • Optional Triple Deck (Spyder 514TS3)
      • 5′ x 14′ (1.5 m x 4.3 m) triple deck screen box (includes additional stacking conveyor)
    • Standard Double Deck
      • 5′ x 14′ (1.5m x 4.3m) Double deck two bearing screen
      • 5′ x 12′ (1.5m x 3.7m) Bottom deck
    • Adjustable screen angle
  • Engine / Control
    • Yanmar® Tier IV Flex 84 HP (62.63 kw) diesel engine
    • Remtron® wireless remote control operation
  • Conveyors
    • 42″ (1067mmm) Wide fines conveyor
      • 13′-10″ (4.2m) Discharge height
    • Side discharge belt angles: 18° – 24°
      • 24″ (610mm) Overs conveyor
        • 16′-6″ (5.04m) Discharge height
      • 24″ (610mm) Mids conveyor
        • 16′-6″ (5.04m) Discharge height
  • Hopper Feeder
    • Standard grizzly
    • 8 Cubic yard (6.1 Cubic Meters) hopper
    • Low feed height of 9′-4″ (2.8m) without grizzly
  • Structure / Undercarriage
    • Heavy-duty tracked undercarriage
    • 15.7″ (400mm) Shoe width for low ground pressure
    • Heavy-duty unibody frame chassis
  • Unique / Patented Features
    • Patented Smooth Start® technology – U.S. #6,669,026
    • Independent hydraulics
